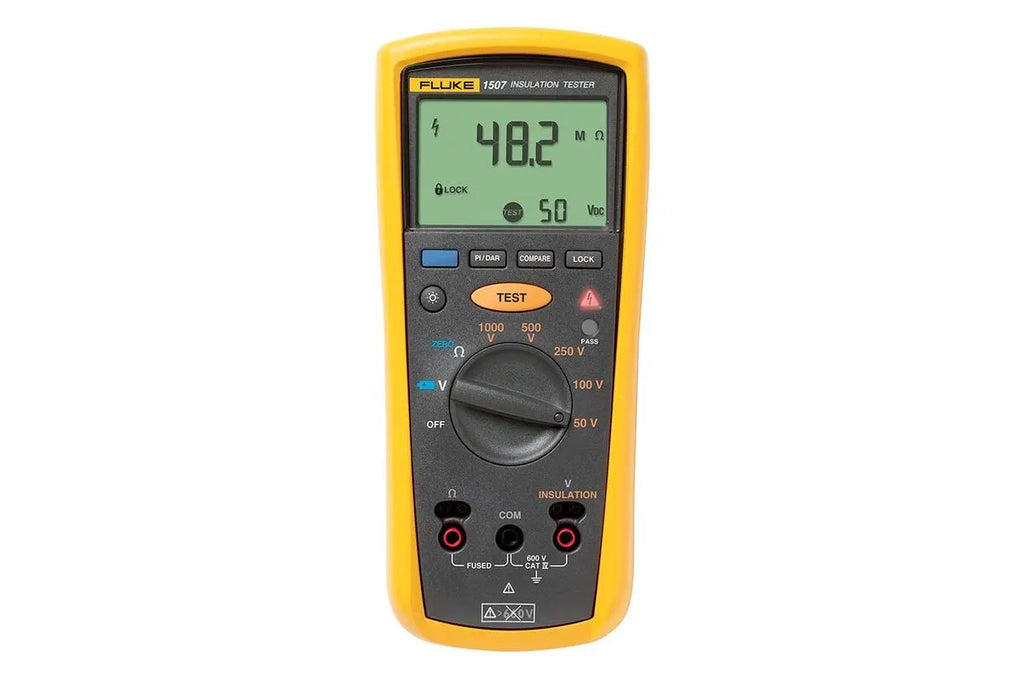

Name: Fluke 1507 1000V Insulation Resistance Tester
Brand: Fluke
Price: 51200.00 INR
Availability: InStock

Fluke 1507 1000V Insulation Resistance Tester

Rs. 51,200.00 Rs. 64,000.00

Fluke 1507 1000V Insulation Resistance Tester

Why to Choose ?
✔ Ideal for preventive maintenance & insulation diagnostics
✔ Combines insulation tester + multimeter functions
✔ Enhances safety with live detection and auto discharge
✔ Saves time with automated calculations (PI/DAR)
✔ Portable and durable for field engineers

-20% Rs. 51,200.00

M.R.P.: Rs. 64,000.00

Inclusive of all taxes

Product Overview

Key Features

Specifications

Accessories

The Fluke 1507 is a compact, rugged insulation resistance tester (megohmmeter) designed for electrical contractors and industrial professionals. It’s built for preventive maintenance, troubleshooting, and commissioning, offering advanced insulation diagnostics in a portable form.

Insulation testing from 0.01 MΩ to 10 GΩ
Multiple test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
Automatically calculates Polarization Index (PI) and Dielectric Absorption Ratio (DAR)
Compare (Pass/Fail) function for repetitive testing
Live circuit detection prevents testing above 30 V
Auto-discharge for added safety
Measures AC/DC voltage up to 600 V
Earth-bond continuity testing with 200 mA current
Remote probe for faster, one-hand testing
Large backlit display for field use
CAT IV 600 V safety rating

Insulation Range: 0.01 MΩ – 10 GΩ
Test Voltages: 50 V / 100 V / 250 V / 500 V / 1000 V
AC/DC Voltage: Up to 600 V
Resistance: 0.01 Ω – 20 kΩ
Earth Bond Test Current: >200 mA

Accuracy:
Insulation: ±1.5% (typical ranges)
Voltage: ±2%

Safety Rating: CAT IV 600 V
Operating Temperature: -20°C to 55°C
Dimensions: 203 x 100 x 50 mm
Weight: 550 g
Battery: 4 AA alkaline (≈1000 insulation tests)
Protection: IP40

Remote probe
Test leads
Test probes
Alligator clips
User documentation
