Fluke 1535 2500V Insulation Resistance Tester

Fluke 1535 2500V Insulation Resistance Tester

Rs. 105,280.00 Rs. 131,600.00
Skip to product information
Fluke 1535 2500V Insulation Resistance Tester
  • Fluke 1535 2500V Insulation Resistance Tester
  • Fluke 1535 2500V Insulation Resistance Tester
  • Fluke 1535 2500V Insulation Resistance Tester
Fluke 1535 2500V Insulation Resistance Tester

Fluke 1535 2500V Insulation Resistance Tester

Why to Choose ?
✔ Ideal for high-voltage insulation testing (motors, transformers, solar, cables)
✔ Much higher range than standard testers like the 1507
✔ Advanced diagnostics (PI, DAR, DD, Ramp) for deeper analysis
✔ Perfect for preventive maintenance + fault detection
✔ 1537 adds data logging + reporting, making it enterprise-ready
-20% Rs. 105,280.00
M.R.P.: Rs. 131,600.00
Inclusive of all taxes
Product Overview
Key Features
Specifications
Accessories

The Fluke 1535 series are high-voltage insulation resistance testers (megohmmeters) built for advanced industrial, utility, and solar applications. With test voltages up to 2500 V and insulation measurement up to 500 GΩ, they are designed for deep diagnostics and critical asset testing.

  • Insulation testing up to 500 GΩUser-selectable test voltages: 250 V, 500 V, 1000 V, 2500 V
  • Automatic PI (Polarization Index) and DAR (Dielectric Absorption Ratio) calculations
  • High short-circuit current (up to 5 mA) for faster, stable readings
  • Performs 1300+ tests on a single charge
  • CAT IV 600 V safety rating with voltage alarm
  • Rugged, portable design for field and industrial use

Exclusive to Fluke 1537:

  • AC/DC voltage and resistance measurement
  • Adjustable test voltage in 100 V increments
  • Ramp test mode for detecting hidden faults
  • Dielectric Discharge (DD) calculation
  • Internal memory + PC software for data logging
  • Custom test parameters and labeling

Insulation Range: Up to 500 GΩ
Test Voltages: 250 V – 2500 V (adjustable)

Short Circuit Current:
1535: >2 mA
1537: >5 mA

AC/DC Voltage (1537): Up to 600 V
Resistance (1537): Up to 60 kΩ
Leakage Current: 1 nA – 2 mA
Capacitance: 0.01 µF – 2.0 µF
Safety Rating: CAT IV 600 V
Display: Large digital screen
Battery: 8 AA alkaline
Dimensions: 184 x 211 x 93 mm
Weight: 1.3 kg
Protection: IP40

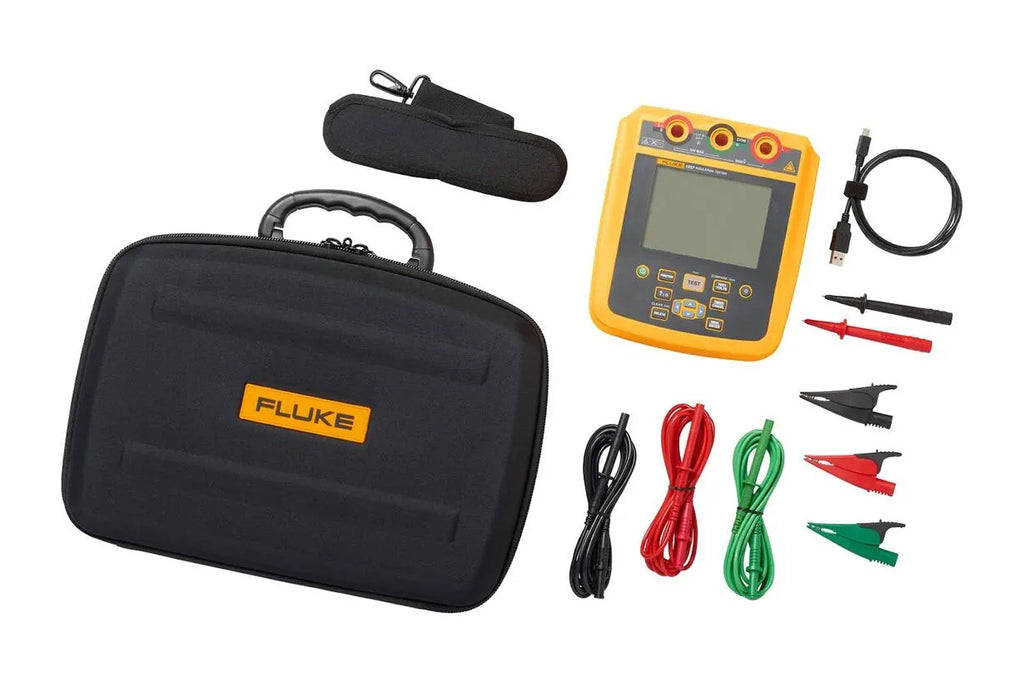

Fluke 1537 Insulation Reistance Tester
Test leads with alligator clips (red, black, green)
Probe (red, black)
Soft carrying case
USB cable (Fluke 1537 only)
PC software (Fluke 1537 only - downloadable from the Fluke Website)
