Fluke 1577 Insulation Multimeter

Fluke 1577 Insulation Multimeter

Rs. 65,360.00 Rs. 81,700.00
Skip to product information
Fluke 1577 Insulation Multimeter
  • Fluke 1577 Insulation Multimeter
  • Fluke 1577 Insulation Multimeter
  • Fluke 1577 Insulation Multimeter
Fluke 1577 Insulation Multimeter

Fluke 1577 Insulation Multimeter

Why to Choose ?
✔ Combines two essential tools in one, reducing cost and tool load
✔ Ideal for field engineers and electricians needing versatility
✔ Ensures safe testing with live circuit detection and auto discharge
✔ Suitable for routine insulation testing + electrical troubleshooting
✔ Compact, rugged, and easy to carry for everyday use
-20% Rs. 65,360.00
M.R.P.: Rs. 81,700.00
Inclusive of all taxes
Product Overview
Key Features
Specifications
Accessories

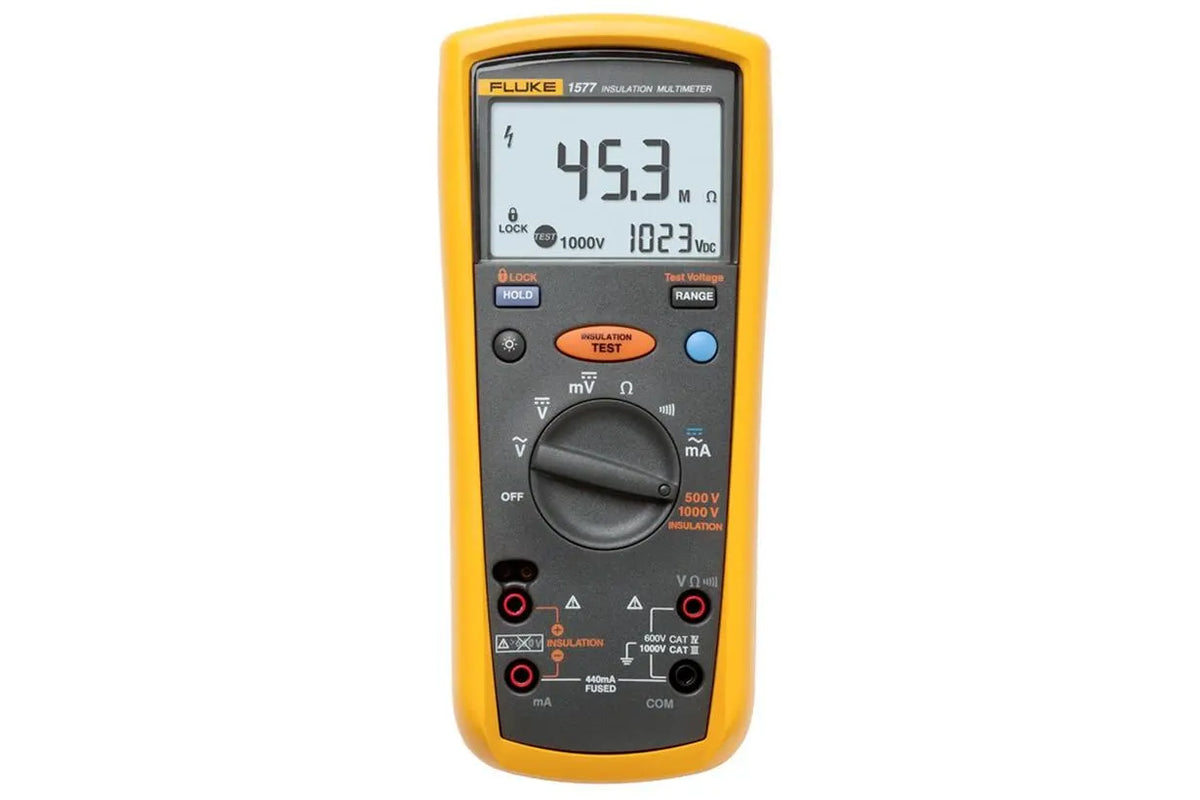

The Fluke 1577 is a 2-in-1 insulation multimeter that combines a digital insulation tester and a true RMS digital multimeter in one compact device. It is designed for electricians and maintenance professionals working on motors, cables, switchgear, and electrical systems, offering both troubleshooting and preventive maintenance capabilities in a single tool.

  • Insulation test voltages: 500 V, 1000 V
  • Insulation resistance range: 0.1 MΩ to 600 MΩ
  • True RMS digital multimeter functionality
  • AC/DC voltage measurement up to 1000 V
  • Current measurement up to 400 mA
  • Resistance measurement up to 50 MΩ
  • Auto discharge of capacitive voltage
  • Live circuit detection (>30 V protection)
  • Continuity testing with audible indication
  • Large backlit display
  • Auto power-off for battery saving
  • Safety rating: CAT III 1000 V / CAT IV 600 V

Electrical Specifications
DC Voltage: Up to 1000 V
AC Voltage: Up to 1000 V
DC Current: Up to 400 mA
AC Current: Up to 400 mA
Resistance: Up to 50 MΩ

Insulation Testing
Test Voltages: 500 V, 1000 V
Range: 0.1 MΩ to 600 MΩ

Accuracy:
500 V: ±(2.0% + 5)
1000 V: ±(2.0% + 5)

General Specifications
Safety Rating: CAT III 1000 V / CAT IV 600 V
Operating Temperature: –20°C to +55°C
Storage Temperature: –40°C to +60°C
Battery Life: Up to 1000 insulation tests
Size: 203 × 100 × 50 mm
Weight: 624 g
IP Rating: IP40

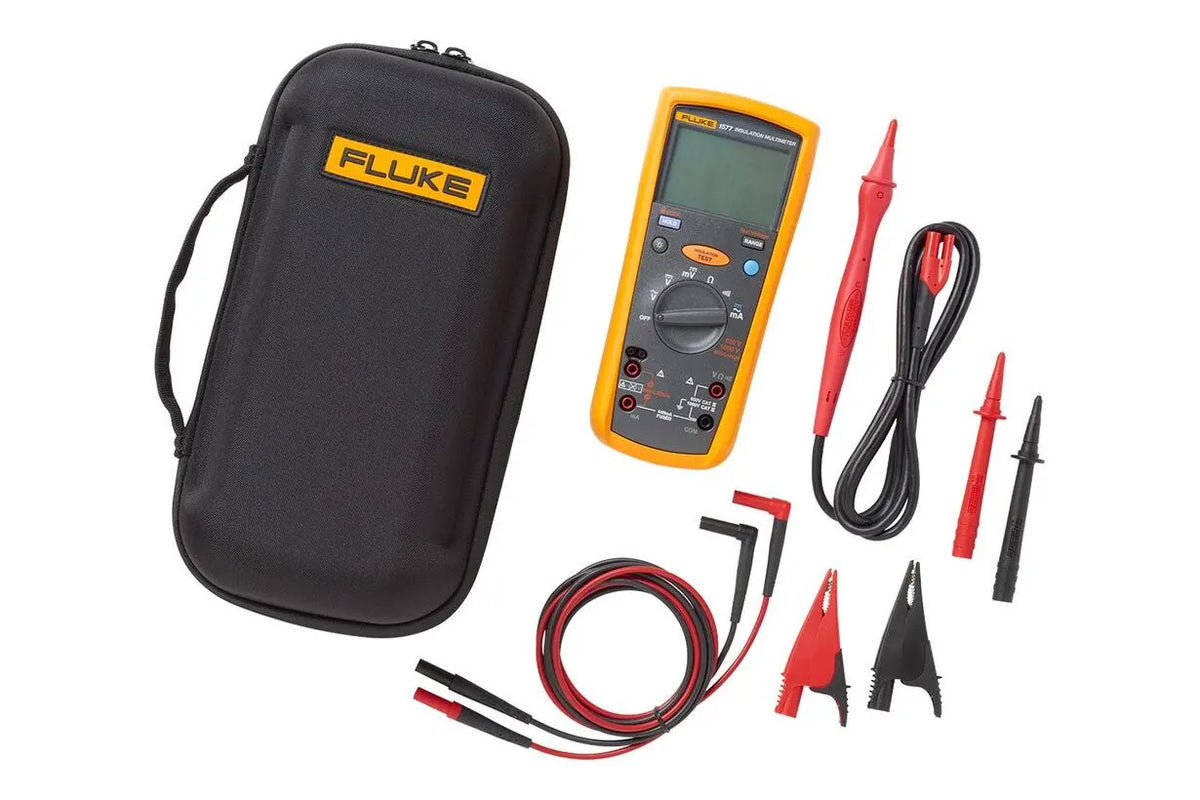

Remote probe
Test leads
Alligator clips
Hard case
Four AA alkaline batteries
Quick reference guide
CD rom with manual
