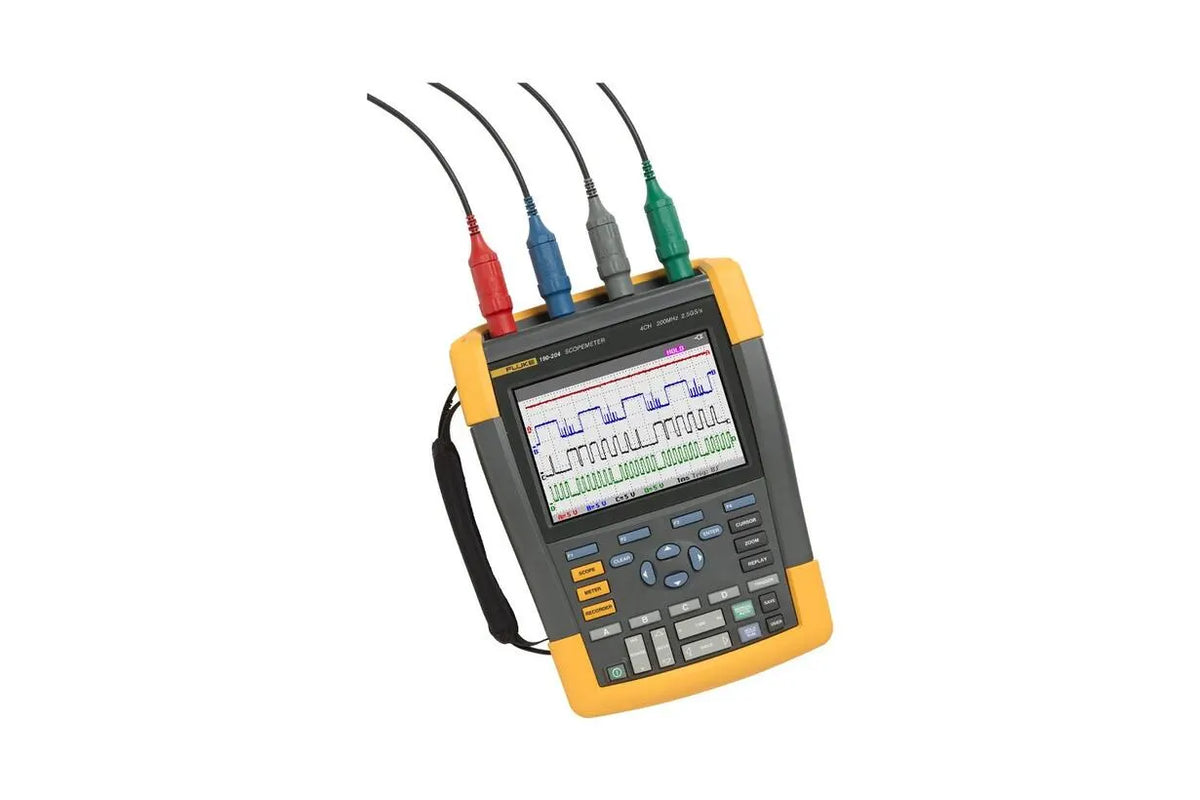

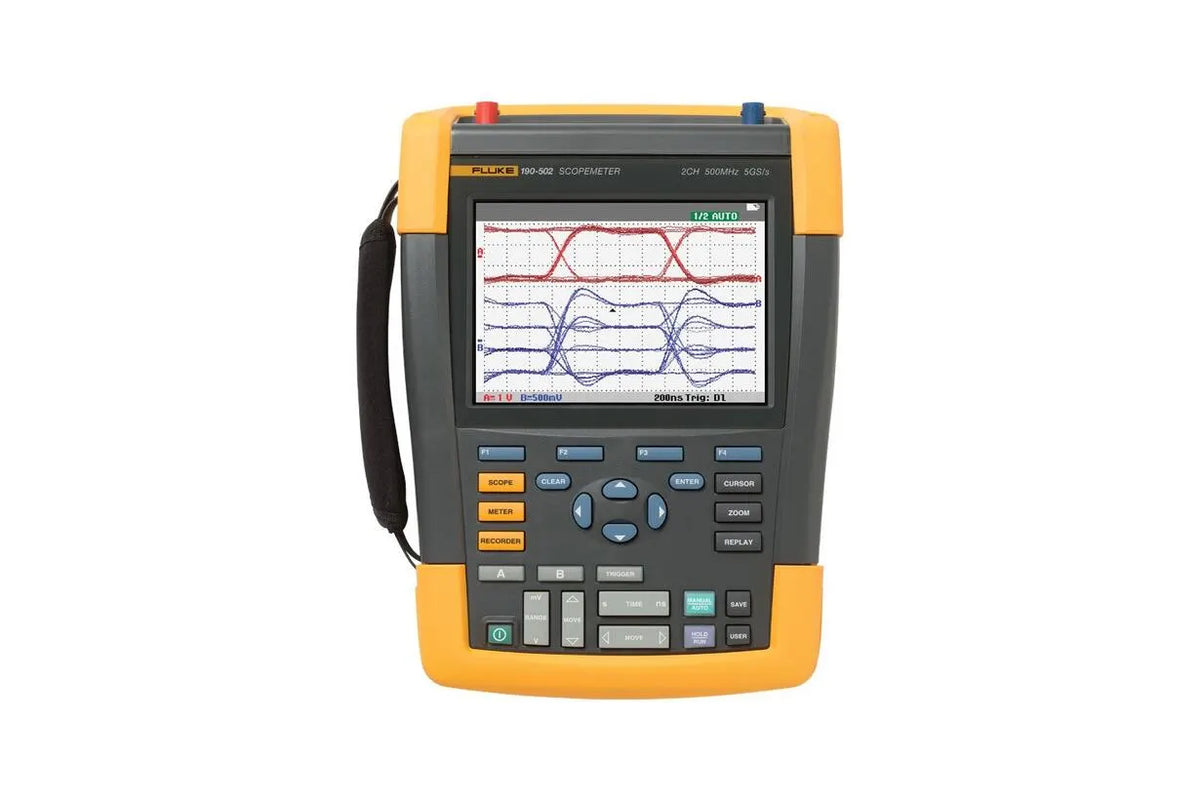

Fluke 190-502 ScopeMeter
  • Fluke 190-502 ScopeMeter
  • Fluke 190-502 ScopeMeter
  • Fluke 190-502 ScopeMeter
Fluke 190-502 ScopeMeter

Fluke 190-502 ScopeMeter

Why to Choose ?
✔ Bench-level performance in a handheld device
✔ Handles high-speed signals + power electronics
✔ Isolated inputs → safe testing on complex/mixed circuits
✔ Captures intermittent faults & transients easily

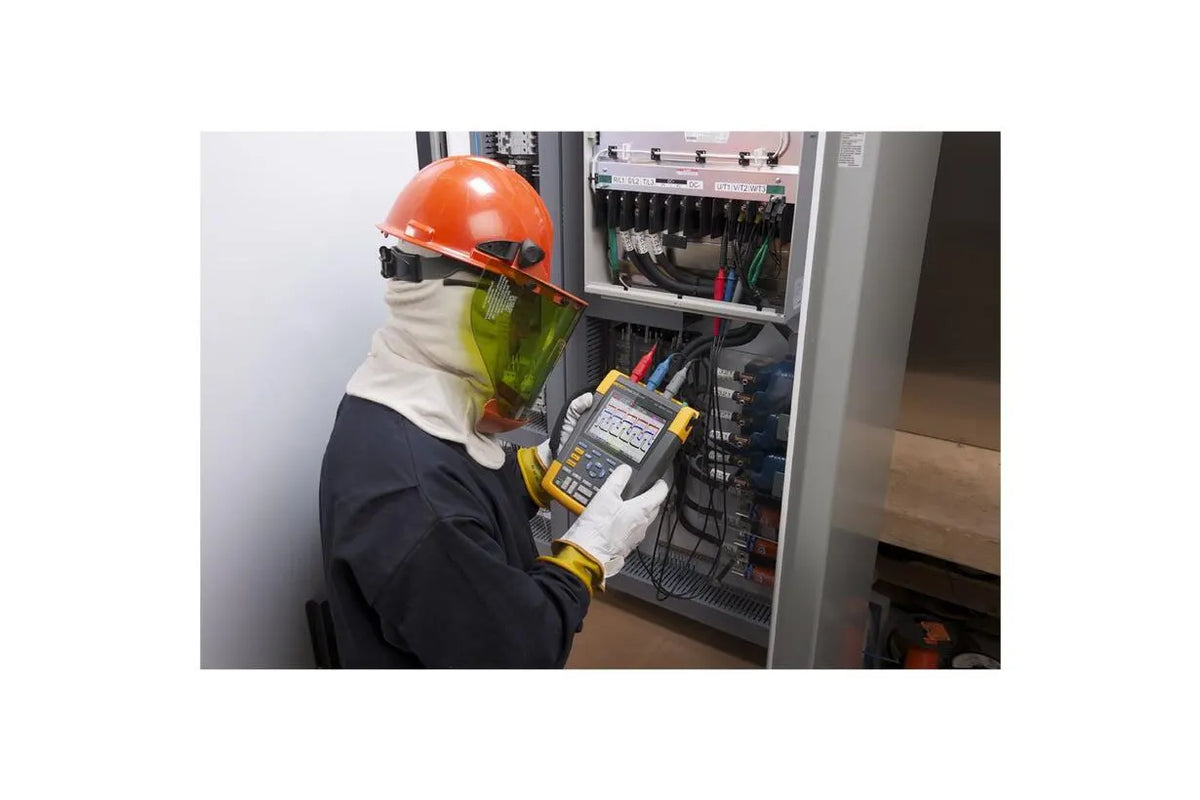

✔ Works in harsh industrial environments (dust, vibration, humidity)
✔ Ideal for VFDs, inverters, motor drives, converters
-10% Rs. 723,420.00
M.R.P.: Rs. 803,800.00
Inclusive of all taxes
Product Overview
Key Features
Specifications
Accessories

The Fluke 190-502 ScopeMeter® is a high-performance, portable 500 MHz oscilloscope built for industrial environments where both precision and safety are critical. It combines bench-level performance (5 GS/s sampling) with CAT IV safety, making it ideal for everything from micro-electronics to heavy power systems.

With dual isolated inputs, built-in multimeter, and advanced recording modes, it is designed for engineers who need deep diagnostics in the field, not just basic troubleshooting.

  • 500 MHz bandwidth, 5 GS/s sampling rate
  • Dual electrically isolated inputs
  • CAT III 1000 V / CAT IV 600 V safety rating
  • Built-in 5000 count digital multimeter
  • Connect-and-View™ auto triggering
  • ScopeRecord™ (48-hour waveform recording)
  • TrendPlot™ (up to 22 days trending)
  • Deep memory: 10,000 samples per channel
  • Glitch capture: 8 ns
  • USB connectivity (isolated ports)
  • IP51 rugged design

Oscilloscope Performancec

Bandwidth: 500 MHz
Channels: 2 isolated inputs
Sampling rate: 5 GS/s
Timebase: 10 ns to 2 min/div
Input sensitivity: 2 mV to 100 V/div
Glitch capture: 8 ns

Record length:
Scope mode: 10,000 pts/channel
ScopeRecord: 30,000 pts/channel

Measurement & Triggering

Trigger modes:
Connect-and-View™, Edge, Pulse width, Video, Single-shot
Automatic measurements: 30+ parameters
Cursor measurements: 7 types
Waveform compare + Pass/Fail testing

Multimeter (Built-in)

Resolution: 5000 counts

Functions:
VDC, VAC, VAC+DC
Resistance, continuity, diode
Current & temperature (with probes)

Recording & Analysis

ScopeRecord™: Up to 48 hours waveform capture
TrendPlot™: Up to 22 days trend logging
Event capture for power failures, motor starts, transients

Display & Interface

Screen: 153 mm full-color LCD
Connectivity: Isolated USB (PC + storage)
Software: FlukeView®

Power & Build

Battery: Li-ion (BP290)

Battery life:
~4 hours standard
~8 hours (optional battery)

Weight: 2.2 kg
Protection: IP51 (dust + drip resistant)
Safety: CAT III 1000 V / CAT IV 600 V

Color ScopeMeter® 500 MHz
2 channels
DMM/Ext.input
