Why to Choose ?
✔ Complete solution → measure + simulate + source in one tool
✔ Test loops without shutting down systems
✔ Ideal for PLC, DCS, transmitters, I/P converters
✔ Saves time → up to 5x faster than traditional DMM testing
✔ Perfect for commissioning, calibration & troubleshooting
✔ Advanced functions → best for process engineers (not just electricians)
-10% Rs. 118,440.00
M.R.P.: Rs. 131,600.00
Inclusive of all taxes
Product Overview
Key Features
Specifications
Accessories

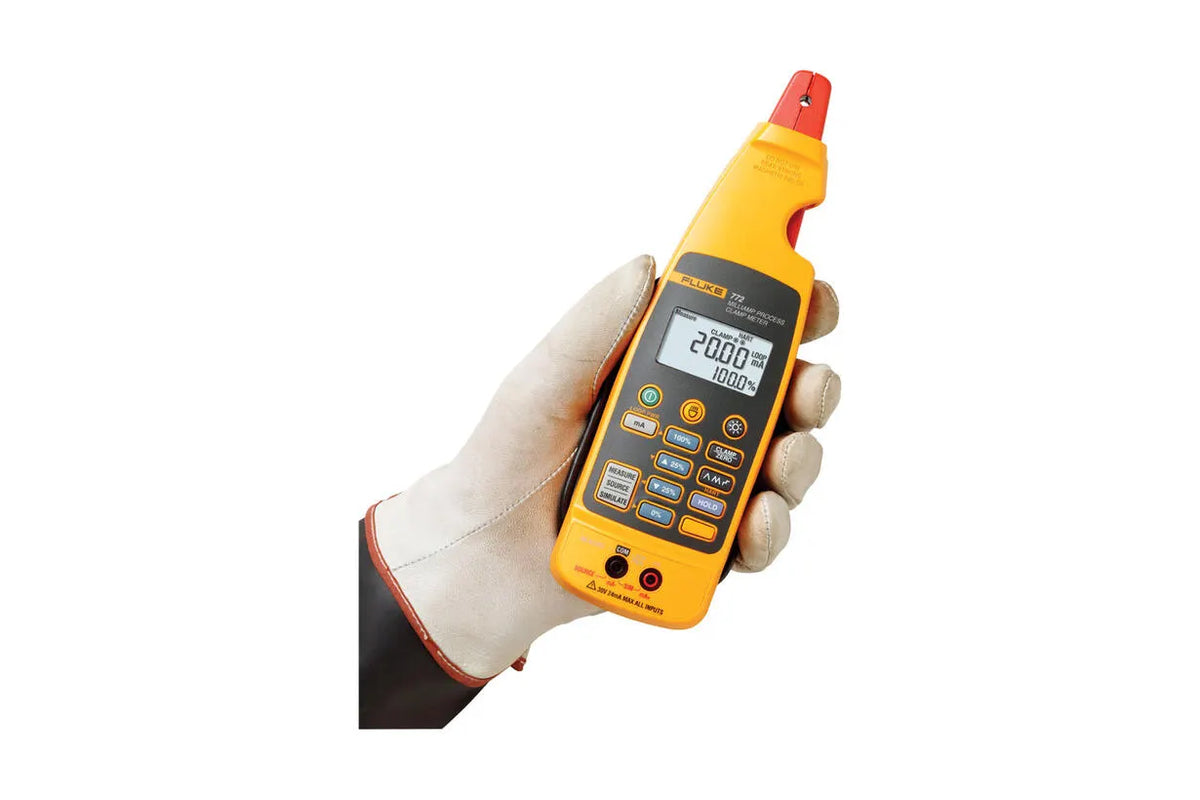

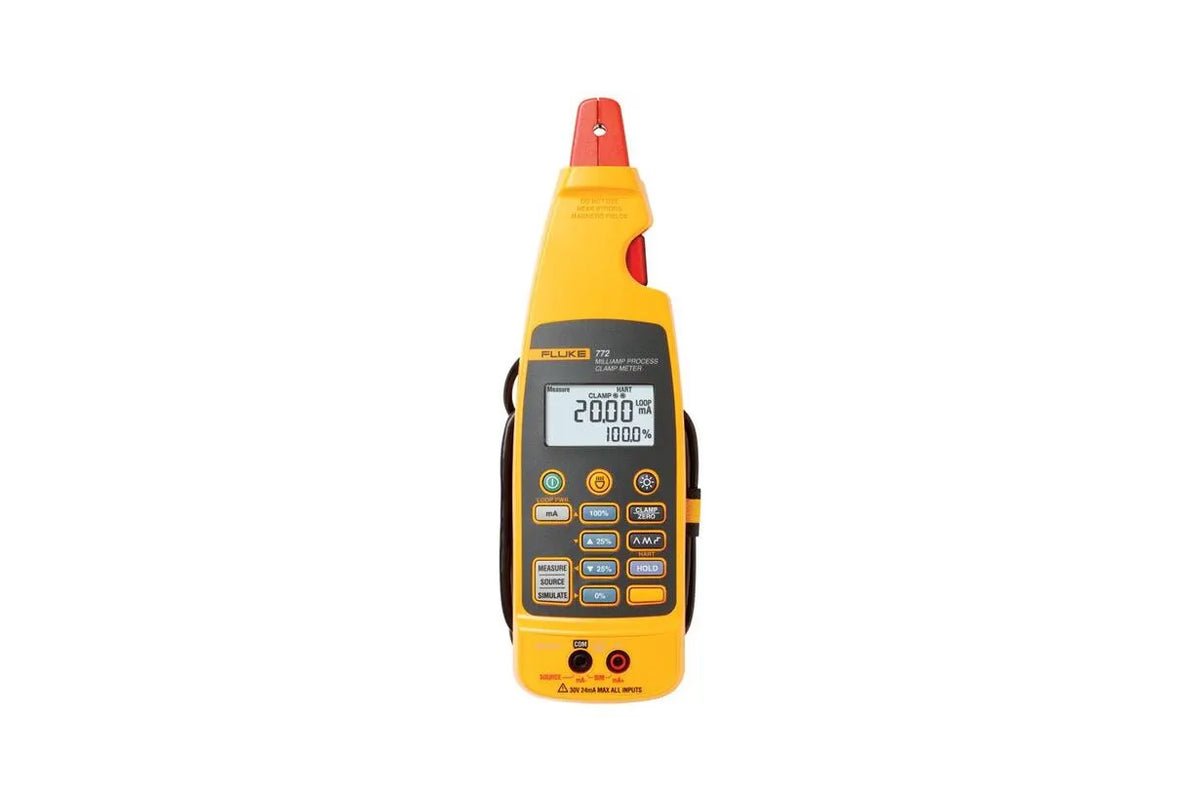

The Fluke 772 is an advanced milliamp process clamp meter that goes beyond basic measurement by allowing you to measure, source, and simulate 4–20 mA signals. Designed for process technicians and automation engineers, it enables complete loop testing without breaking the circuit, saving time and avoiding downtime.

  • Measures 4–20 mA without breaking the loop
  • Sources & simulates 4–20 mA signals
  • Provides 24V loop power for transmitter testing
  • High accuracy: ±0.2%
  • Resolution: 0.01 mA
  • Dual display (mA + % of span)
  • Detachable clamp for tight spaces
  • Auto ramp & step output (25%)
  • Built-in LED spotlight
  • Hold function for capturing readings

mA Measurement (Clamp)

Range: 0 to 20.99 mA
Accuracy: ±(0.2% + 5 counts)
Range: 21.0 mA to 100.0 mA
Accuracy: ±(1% + 5 counts)

mA Measurement (Series via Test Leads)

Range: 0 to 24.00 mA
Accuracy: ±(0.2% + 2 counts)

mA Source / Simulation

Range: 0 to 24.00 mA
Accuracy: ±(0.2% + 2 counts)
Max drive: 24 mA into 1000 Ω
Simulation voltage: Up to 50 V DC

Loop Power

Built-in 24 V loop supply for powering transmitters

Physical & Mechanical

Conductor Size: Max 4.5 mm
Size: 44 × 70 × 246 mm
Weight: 410 g
Drop Test: 1 meter

Environmental

Operating Temp: -10°C to 50°C
Storage Temp: -25°C to 60°C
Humidity: <90% RH
Altitude: Up to 2000 m
IP Rating: IP40

Power

Battery: 4 × AA alkaline
Battery Life: ~12 hours (source mode)

Compliance

EMC: EN61326-1 compliant
Temperature Coefficient: 0.01%/°C

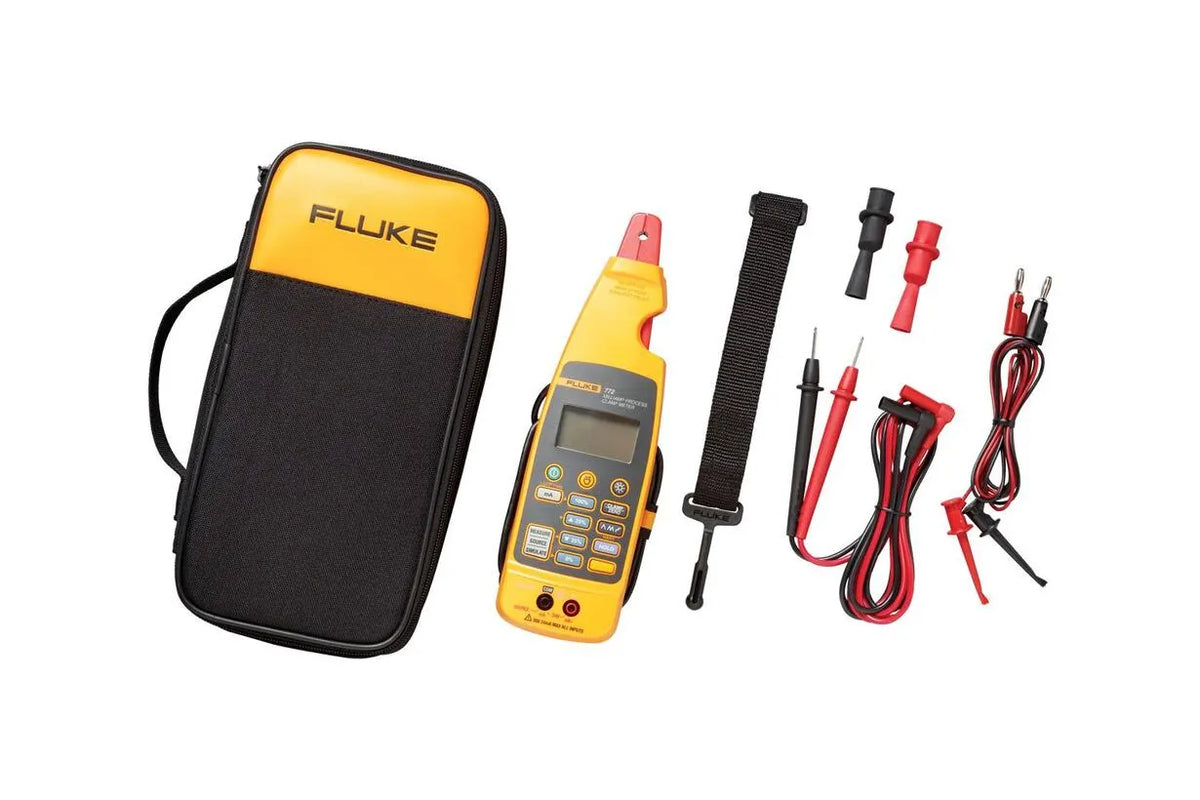

Four AA alkaline batteries (installed)
Soft carrying case
TL75 test leads
AC 72 detachable clip
TL 940 mini hook test leads
Instruction sheet
Hanging tool with hook and loop strap
