Why to Choose ?
✔ Eliminates guesswork → clear “Go / No-Go” decisions
✔ Designed for non-experts as well as professionals
✔ Consistent results regardless of user handling variations
✔ Combines multiple diagnostics in one tool → vibration + bearing + temperature
✔ Ideal for:
Motors
Pumps
Compressors
Industrial machinery
-10% Rs. 309,330.00
M.R.P.: Rs. 343,700.00
Inclusive of all taxes
Product Overview
Key Features
Specifications
Accessories

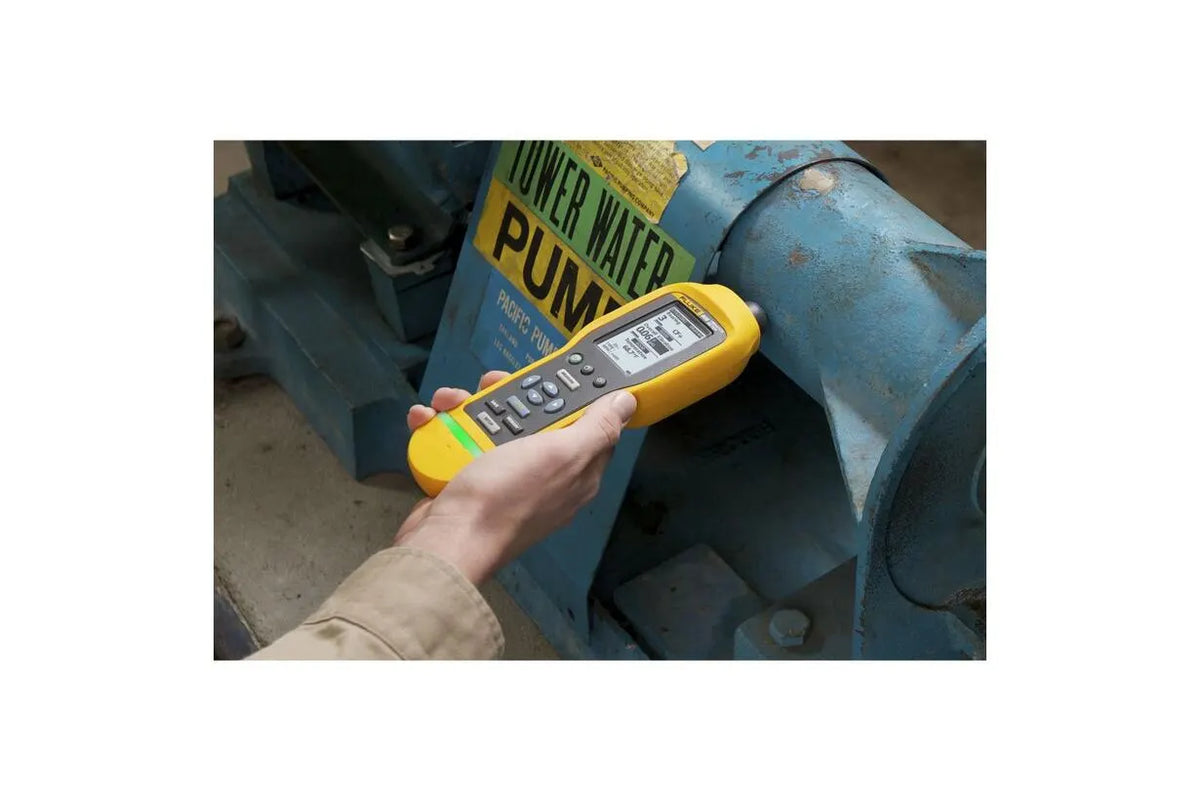

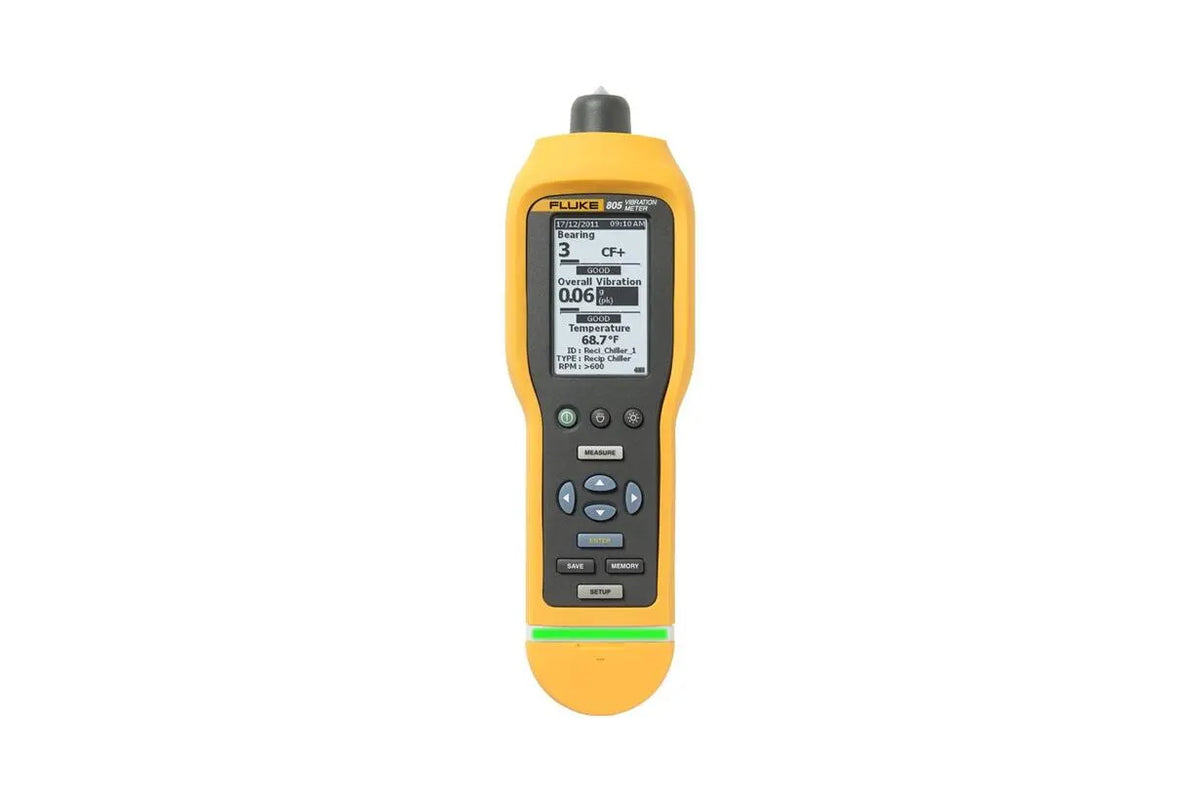

The Fluke 805 Vibration Meter is a reliable, repeatable, and accurate vibration screening tool designed for frontline maintenance teams. It helps you quickly assess bearing condition and overall machine vibration, enabling confident go/no-go decisions without complex analysis tools.

  • Measures overall vibration + bearing condition in one device
  • Innovative sensor tip minimizes errors from angle & pressure
  • Crest Factor+ technology for accurate bearing diagnostics
  • Wide frequency range (10 Hz – 20,000 Hz)
  • 4-level severity scale (Good, Satisfactory, Unsatisfactory, Unacceptable)
  • Built-in IR temperature measurement
  • Color-coded indicators for quick understanding
  • Stores up to 3,500 measurements
  • USB data export + Excel trending templates
  • Built-in flashlight & audio output

Vibration Measurement

Low Frequency Range: 10 Hz to 1,000 Hz
High Frequency Range: 4,000 Hz to 20,000 Hz
Measurement Range: 0.01 g to 50 g
Accuracy: ±5% at 100 Hz

Units:
Acceleration: g, m/s²
Velocity: mm/s, in/s
Displacement: mm, mils

Bearing Analysis

Technology: Crest Factor+

Severity Levels:
Good
Satisfactory
Unsatisfactory
Unacceptable

Temperature Measurement

Range: -20°C to 200°C
Accuracy: ±2°C

Data & Interface

Memory: Up to 3,500 readings
USB: Data export & firmware updates
Software: Excel templates for trending

Sensor & Performance

Sensor Sensitivity: 100 mV/g ±10%

Sampling Rate:
Low: 20,000 Hz
High: 80,000 Hz
Signal-to-noise ratio: 80 dB

Build & Design

Weight: 0.40 kg
Size: 24.1 × 7.1 × 5.8 cm
IP Rating: IP54
Drop Test: 1 meter

Power

Battery: 2 AA (Lithium Iron Disulfide)
Battery Life: ~250 measurements

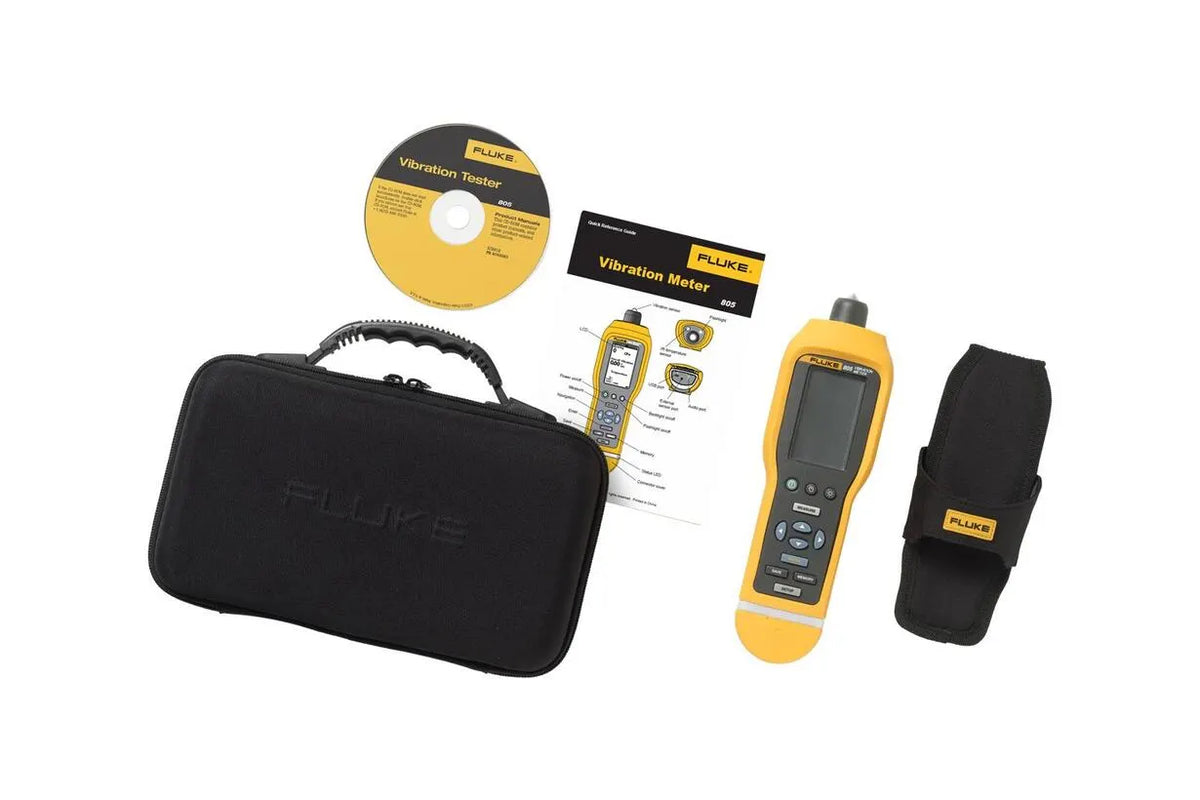

USB cable
Storage case
Belt holster
Quick reference guide
CD-ROM (includes MS Excel template and documentation)
Two (2) AA batteries
