Fluke BT521 Battery Analyzer

Fluke BT521 Battery Analyzer

Rs. 470,250.00 Rs. 522,500.00
Skip to product information
Fluke BT521 Battery Analyzer
  • Fluke BT521 Battery Analyzer
  • Fluke BT521 Battery Analyzer
  • Fluke BT521 Battery Analyzer
Fluke BT521 Battery Analyzer

Fluke BT521 Battery Analyzer

Why to Choose ?
✔ Eliminates human error with auto-save & sequence testing
✔ Provides clear health status (Pass/Fail/Warning) instantly
✔ Helps detect early battery degradation before failure
✔ Ideal for critical backup systems where downtime = loss
✔ Combines measurement + logging + reporting in one tool
-10% Rs. 470,250.00
M.R.P.: Rs. 522,500.00
Inclusive of all taxes
Product Overview
Key Features
Specifications
Accessories

The Fluke 500 Series Battery Analyzer (BT521) is an advanced diagnostic tool for stationary battery systems, designed for maintenance, troubleshooting, and performance testing of battery banks used in critical backup systems like UPS, telecom, and substations. It simplifies testing with automated workflows, sequence testing, and intelligent probes, ensuring accurate and consistent results.

  • Measures internal resistance, DC/AC voltage, current, ripple voltage, frequency & temperature
  • Sequence mode for automatic battery string testing (no manual saving needed)
  • Comprehensive logging with auto data capture
  • Pass / Warn / Fail thresholds for instant diagnostics
  • Wireless communication (BT521) via mobile app

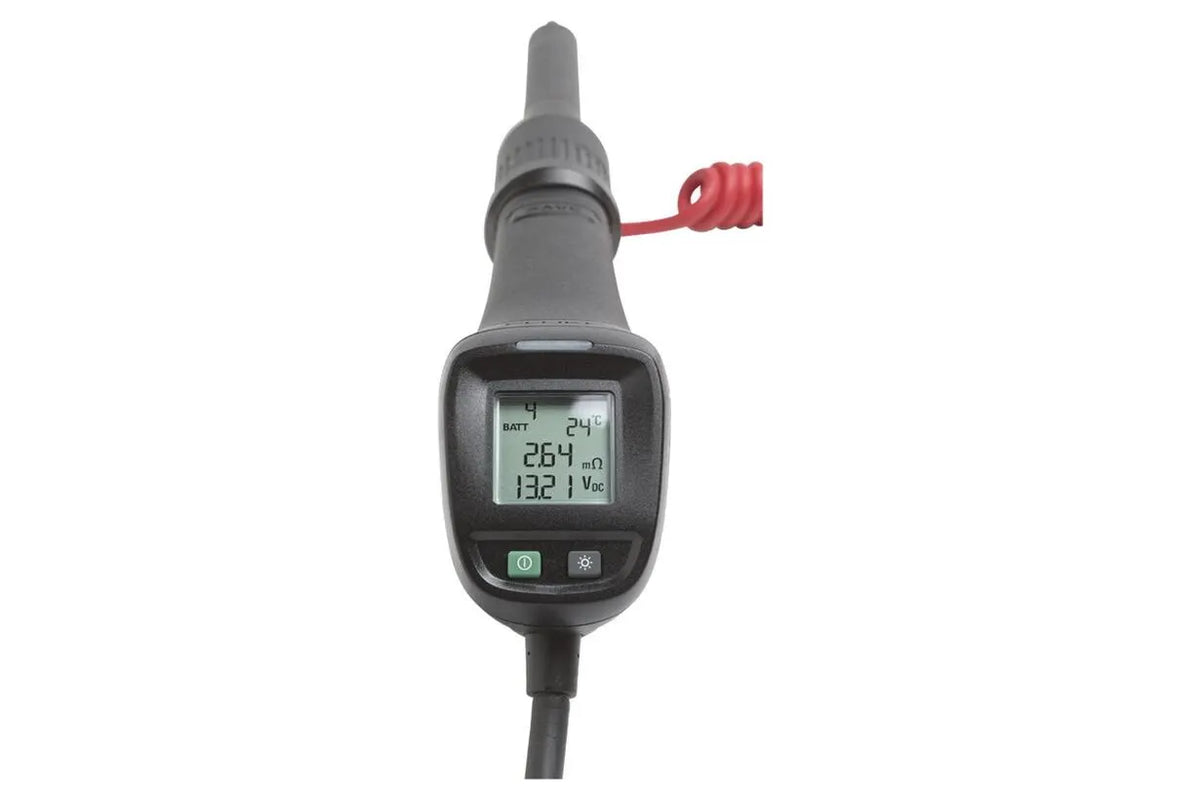

  • Intelligent test probes (BTL21) with built-in temperature sensor
  • Discharge mode for battery capacity analysis
  • Stores up to 999 records per measurement position
  • Designed for all stationary battery types

Measurement Capabilities

Resistance: 0.001 mΩ resolution
DC Voltage: up to 1000 V (BT521)
AC Voltage: up to 600 V
Ripple voltage: up to 6000 mV
Current (with clamp): up to 400 A
Temperature: 0°C to 60°C (BT521)

Data & Logging

999 records per location
Up to 100 profiles, each with 450 batteries
Automatic storage with timestamps

Modes

Meter mode (quick checks)
Sequence mode (full string testing)
Discharge mode (capacity analysis)

Connectivity & Software

USB data transfer
Battery Management Software for reporting & trend analysis
Mobile app support (BT521)

Build & Safety

CAT III 600 V safety rating
Rugged handheld design (1 m drop tested)

Battery analyzer
4-wire test pin (set)
BTL10 Basic Test Lead (set)
TL175 TwistGuard™ Test Leads with adapter

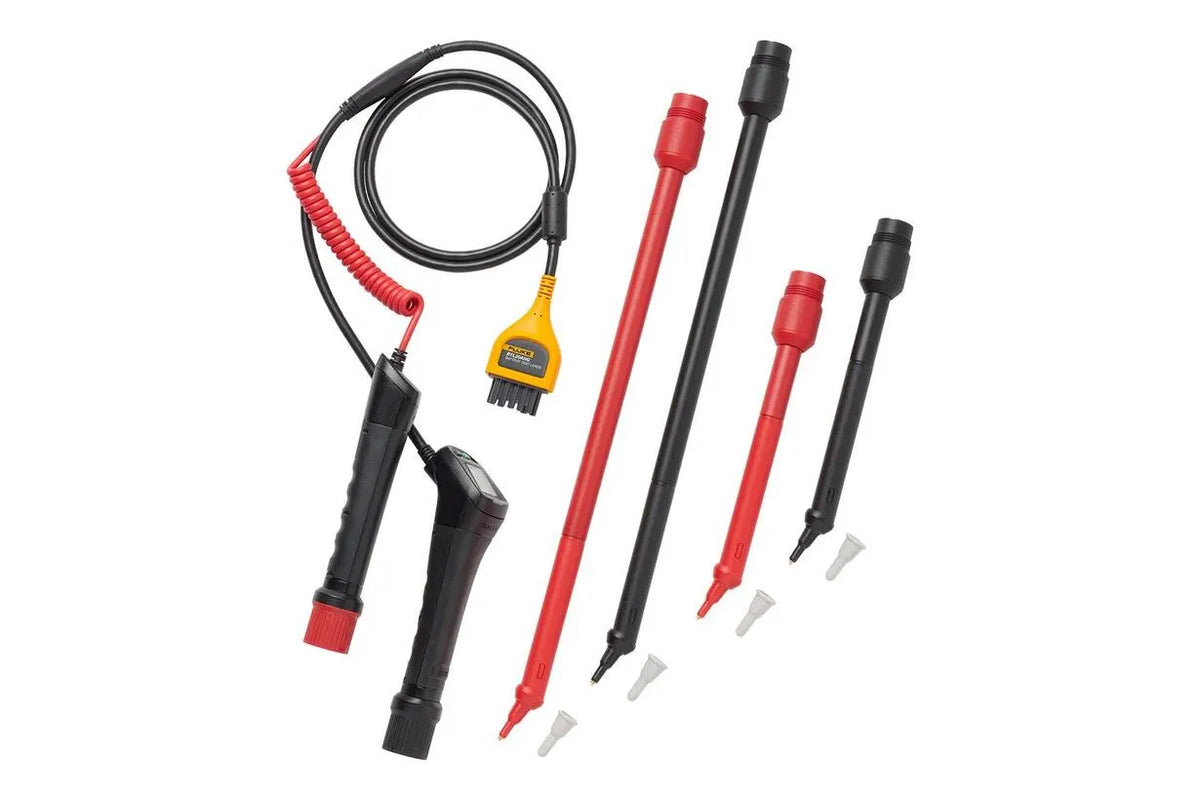

BTL21 Intelligent Test Probe Set, with extender and temperature sensor
i410 AC/DC Current Clamp
BP500 lithium-ion battery
BC500 AC charger
mini-USB cable
Shoulder strap
Belt strap
Magnetic hanging strap
FlukeView® Battery Management Software
Soft carrying case
Spare fuses (2)
Battery tags
Zero Ohm Calibration Resistor
