Fluke TC01B Mobile Thermal Camera for iOS

Fluke TC01B Mobile Thermal Camera for iOS

Rs. 34,720.00 Rs. 43,400.00
Skip to product information
Fluke TC01B Mobile Thermal Camera for iOS
  • Fluke TC01B Mobile Thermal Camera for iOS
  • Fluke TC01B Mobile Thermal Camera for iOS
  • Fluke TC01B Mobile Thermal Camera for iOS
Fluke TC01B Mobile Thermal Camera for iOS

Fluke TC01B Mobile Thermal Camera for iOS

Why to Choose ?
✔ Turns your phone into a professional thermal camera instantly
✔ Ideal for quick inspections without carrying bulky tools
✔ High resolution + sensitivity → detect even minor faults early
✔ Perfect for:
Electrical panels & switchboards
HVAC diagnostics
Underfloor heating checks

✔ General maintenance
Real-time sharing & reporting → faster team collaboration
-20% Rs. 34,720.00
M.R.P.: Rs. 43,400.00
Inclusive of all taxes
Product Overview
Key Features
Specifications
Accessories

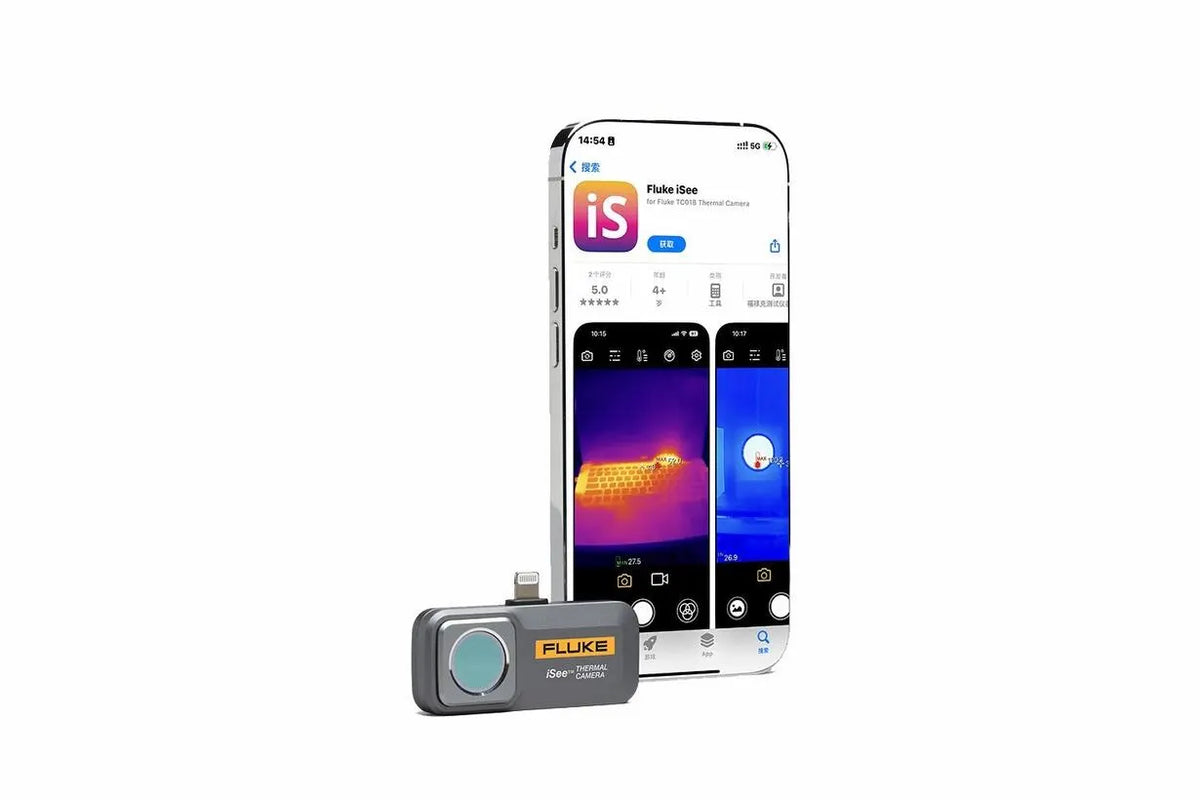

The Fluke iSee™ Mobile Thermal Camera is an ultra-compact, plug-in thermal imaging solution that transforms your smartphone into a powerful diagnostic tool. With 256 × 192 resolution, 25 Hz smooth imaging, and a temperature range up to 550°C, it’s built for fast, on-the-go inspections across electrical, HVAC, and maintenance applications.

  • 256 × 192 IR resolution for sharp thermal imaging
  • 25 Hz frame rate for smooth real-time video
  • Up to 550°C temperature range
  • 50 mK (0.05°C) thermal sensitivity for fine detection
  • ±2% or ±2°C accuracy
  • 10+ color palettes (custom & standard)
  • Spot, line & area temperature analysis
  • Real-time high/low temperature alarms
  • Time-lapse & image annotation features
  • Ultra-lightweight: just 22 g

Thermal Performance

Resolution: 256 × 192 pixels
Sensitivity: 50 mK (0.05°C)
Accuracy: ±2% or ±2°C

Temperature Range:
TC01B : -20°C to 550°C
Frame Rate: 25 Hz
Spectral Range: 8–14 μm

Optics & Imaging
Field of View: 56° × 42°
Spatial Resolution: 3.81 mrad
Focus: Fixed (3.2 mm)
Measurement Distance: 0.25 m to 5 m

Software & Features
Spot / Line / Area analysis
Adjustable emissivity
Real-time alarms
Time-lapse capture
IR + visible comparison
Annotation & sharing

Connectivity & Compatibility
TC01B: Lightning (iOS)
Compatible with iOS

Build & Design
Weight: 22 g
Size: 60 × 33.5 × 11.2 mm
Drop Test: 1 meter

IP Rating:
TC01B : IP56

Power
Powered via mobile device
Consumption: ~200–350 mW

Fluke TC01B Mobile Thermal Camera (Part#: 5589280)
Packaging Box
User's Manual
