Rennsteig Locator for aviation contacts (M/AS/22520/2-02), P/No:8738 1202 0
  • Rennsteig Locator for aviation contacts (M/AS/22520/2-02), P/No:8738 1202 0
Rennsteig Locator for aviation contacts (M/AS/22520/2-02), P/No:8738 1202 0

Rennsteig Locator for aviation contacts (M/AS/22520/2-02), P/No:8738 1202 0

Why to Choose ?
✔ Delivers consistent and repeatable crimp accuracy
✔ Enhances reliability in critical applications like aerospace and industrial wiring
✔ Easy integration with existing crimping systems
✔ Built for durability and long-term performance
-38% Rs. 9,010.00
M.R.P.: Rs. 14,770.00
Inclusive of all taxes
Product Overview
Key Features
Specifications
Available Models

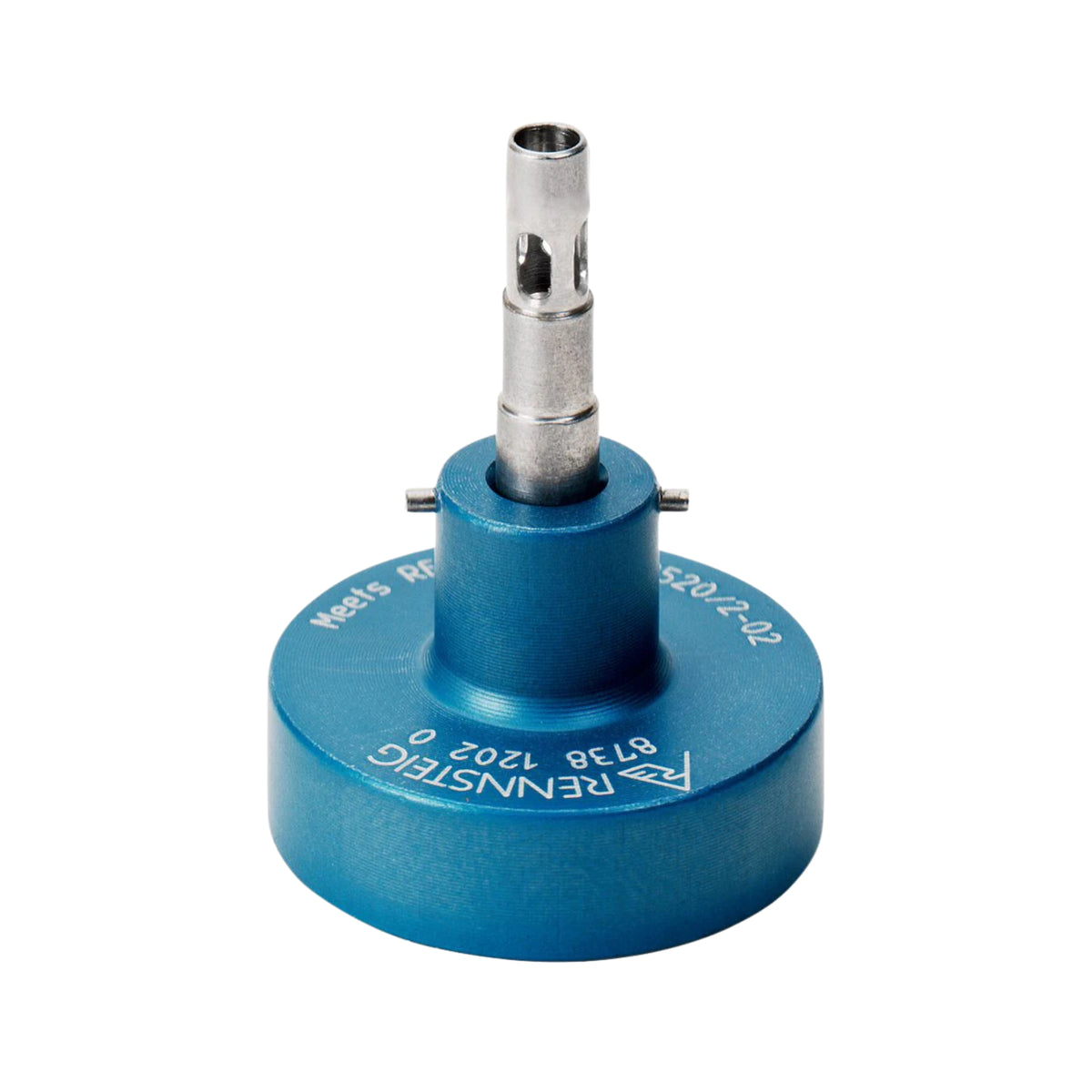

The Single Locator (8738 1202 0) is a precision positioning accessory designed for crimping tools with adapter rings. Engineered according to MIL/SAE AS22520 standards, it ensures accurate alignment of contacts for consistent, high-quality crimping results, especially in aviation and high-reliability applications.

  • Spring-loaded pin for precise and stable contact positioning
  • Compatible with crimp tools using adapter rings
  • Designed as per MIL/SAE AS22520 standards
  • Ideal for AS39029 and EN3155 contacts and similar types
  • Ensures secure and reproducible crimp connections
  • Lightweight and compact design for easy handling

Art. No. :8738 1202 0
EAN : 4049002114106
Weight: 10 g
Dimensions: 24 x 24 x 29 mm
Reference Standard : AS22520/2-02

Compatible Tools :
DigiCrimp (8736 0000 6 / 61),
Selector Crimp (8738 0000 6)

For Crimping Unit : CM 25-3 (636 0736 3 0)

8720 0101 0 – 12-position Locator
8720 1801 0 – Universal locator
8750 0401 0 – 12-position Locator
8750 1701 0 – Universal locator
8728 0902 / 0903 / 0904 / 0905 / 0906 / 0907 / 0908 / 0920 – Single locators
8738 1203 / 1206 / 1207 / 1208 / 1209 / 1210 / 1211 / 1215 / 1223 – Single locators
8758 1102 / 1104 – Multi pin locators
8720 0104 / 0107 / 0116 / 0115 – 12-position locators
8720 0702 / 0709 / 0712 – Pin locators
8750 0404 / 0408 / 0411 / 0416 / 0453 – 12-position locators
8728 1407, 8738 1514, 8758 2202 / 2204 – Multi pin locators
8758 2100 / 2101 – Universal locators
8750 0812 / 0813 – Pin locators
